Product Details

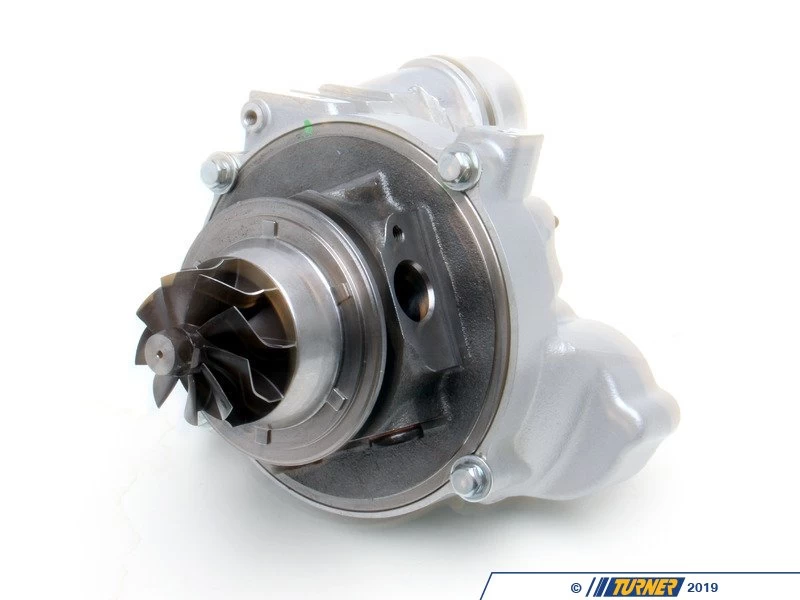

For the racing enthusiast or those just looking for the best, this is the ultimate upgrade to fully maximize the power output of your EWG N55ย engine. The compressor wheel inside theย turbochargerย isย increased in size allowing ~30% greater flow thusย enabling additional boost pressures at higher engine speeds while retaining efficiency.These are fully cast turbos that are manufacturedย to Dinan specifications along with anย upgraded thrust system over the stock turboย to ensure reliable and prolonged life. In order to attain maximum advertised power gains these big turbos will need to be paired withย DINANTRONICSย Stage 4, as well as Dinanโs intercoolerย to fully regulate the boost increase and deliver a polished product although the exhaust and intake areย also recommended.ย
Benefits of the Dinan Big Turbo for the EWG N55ย Engine:
- Fully castย turboย that is manufacturedย to Dinan specifications with an upgraded thrust system thereby avoiding lengthy turnaround times caused by a core exchange program.ย

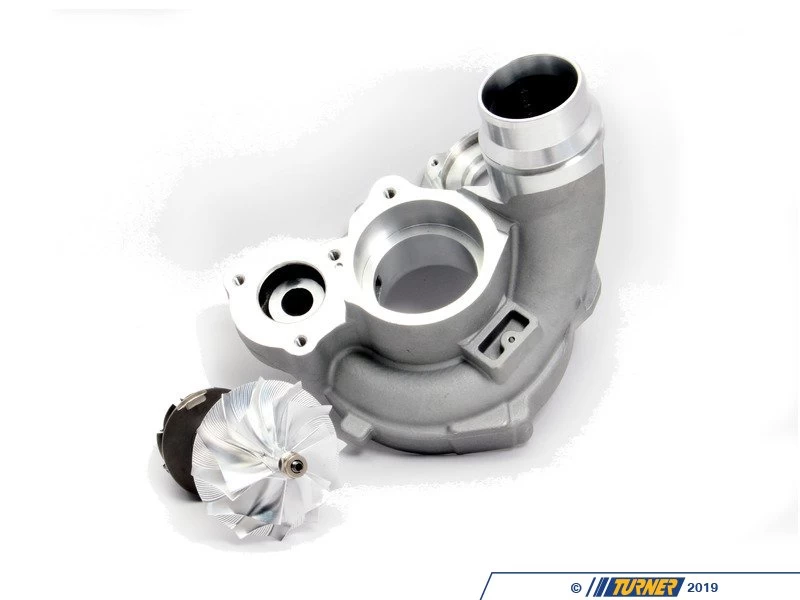

- ย Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which thenย enablesย additional boost to be realizedย while retaining efficiency.
- Turbo assembly is compatible withย electric wastegate vehicles only.
- Peak power: 445 HP @ 6000ย RPM and 455ย ft-lbs @ 3000ย RPM and a max gain of 128ย HP @ 6000 RPM and 113 ft-lbs @ 6000 RPM when coupled with other Dinan Performance upgrades.ย (Data from F22ย M235i.)ย 448 HP @ 6500ย RPM and 417 ft-lbs @ 3000ย RPM and a max gain of 152 HP @ 6500 RPM and 123 ft-lbs @ 6500 RPM when coupled with other Dinan Performance upgrades. (Data from F32 435i. Other variants may differ.)ย
- ย Dinan Installation instructions detail a procedure which is quicker than BMW’s turbo replacement procedure saving the end-user money and time at the shop (Applicable to RWD vehicles only).ย
- Includes o-rings and gaskets needed for complete installation on a RWD vehicle only. If installing on an xDrive vehicle Dinan P/N D313-0117 is required for additional installation hardware.
- ย Factory matching new car warranty (4yr/50k) when run in Dinan specification.
- 50 State Emissions legal; CARB EO # D-176-49.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
