9″ Twin Disc Clutch Kit – Single Mass Flywheel With Solid Organic Discs

Product Details

The XClutch 9 inch kit is one of XClutch’s most adaptable kits for performance upgrades and conversions.

Offering very high torque capacity and available with organic, ceramic and carbon friction materials, the 9 inch performance clutch is used in high power street cars and race cars around the world.
The twin disc organic upgrade optimizes pedal feel and reliability in high horsepower street driven vehicles.

XClutch performance upgrades have been engineered to provide the ultimate in clutch performance. Utilizing the latest pressure plate design and friction material composition, XClutch upgrades offer the ideal balance between drivability and performance for different vehicle applications. The pivot point and diaphragm design are carefully analyzed to ensure positive pedal feel and increased clamping force.

Specifications

• Clutch Disc Diameter – 9 1/16″
• Clutch Disc Spline – 26
• Disc Material – Organic
• Disc Type – Solid
• Input Shaft Diameter – 1 3/8″
• Friction Surface Configuration – Raised
• Flywheel Step – +0.150
• Assembly Weight
• Maximum Torque Capacity – 890
• Recommended Use – Performance Street Use

Includes

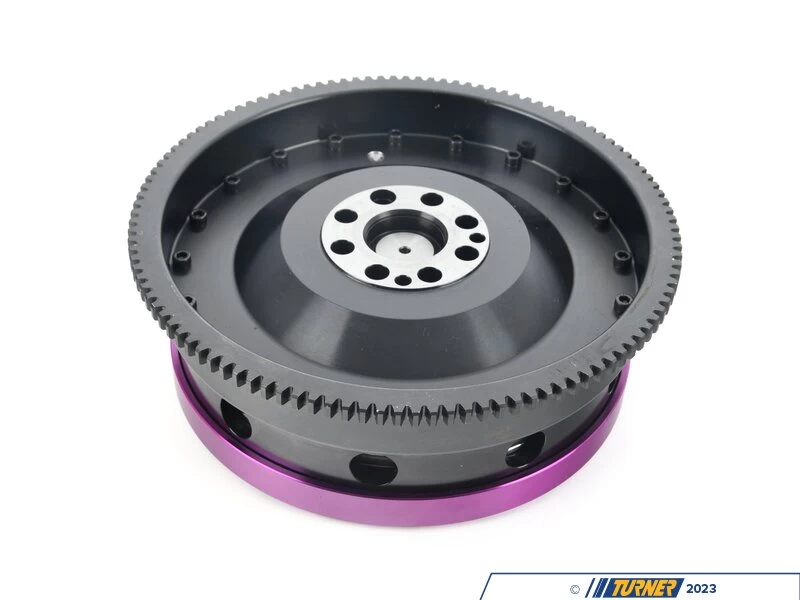

• Single Mass Flywheel
• 2 Solid Organic Clutch Discs

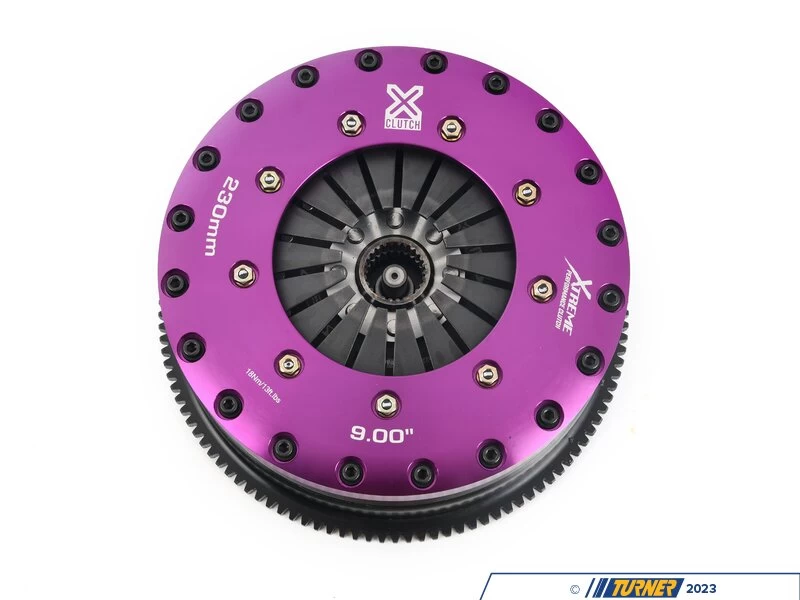

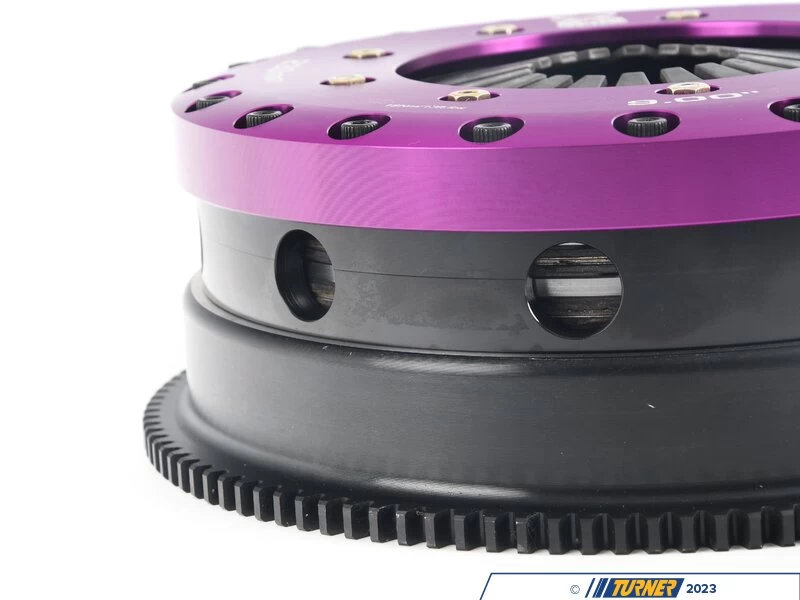

• Pressure Plate Assembly

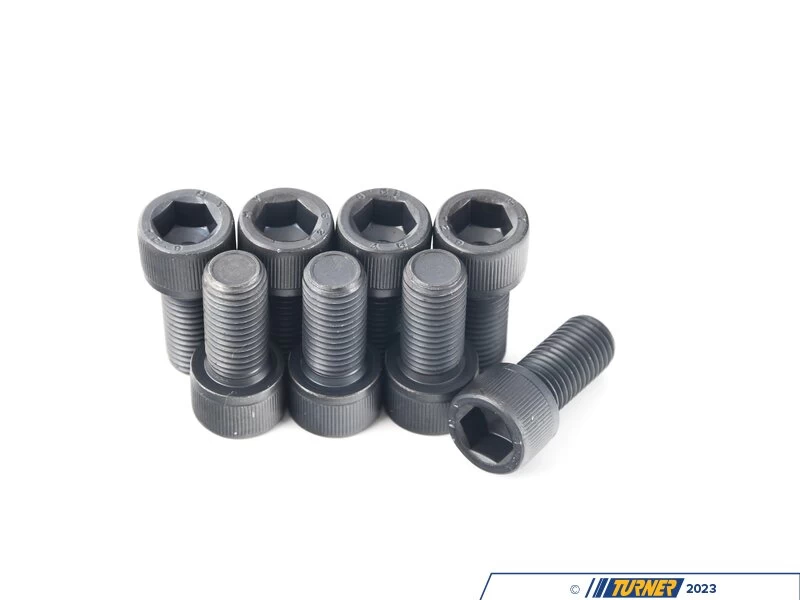

• Flywheel Bolts
• Pressure Plate Bolts

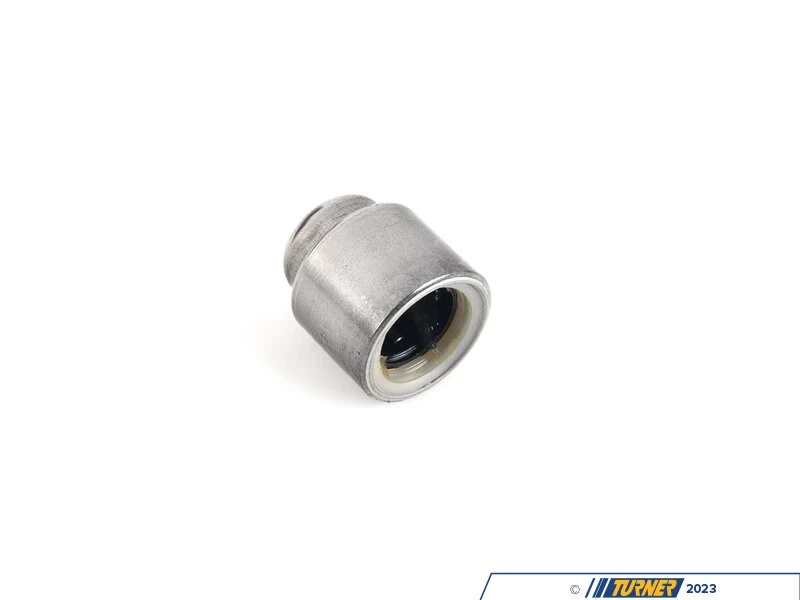

• Pilot Bearing

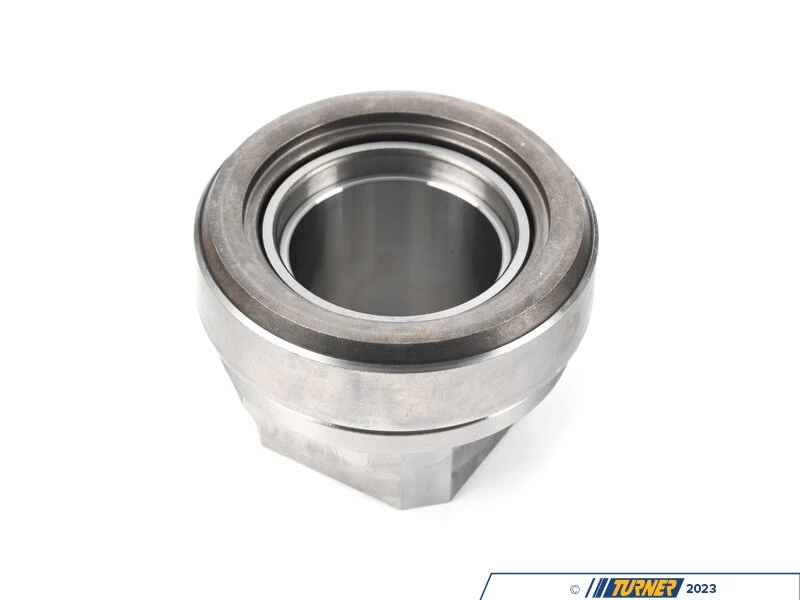

• Release Bearing
• Clutch Spline Grease

With one of the world’s most advanced clutch testing and R&D facilities, in-house vehicle testing and over 30 years of clutch experience, XClutch performance upgrades offer the highest levels of engineering and product development for your street vehicle, 4×4 or dedicated race car.
